Could Red Wiggler Worms Eliminate Stinky Campground Toilets?

June 27, 2018

Within a week, a microflush toilet’s legion of red wiggler worms turns solid waste into fully composted topsoil. Photo © John McCoy

Stinky, fly-infested pit toilets might someday disappear from America’s campgrounds, thanks to the dietary proclivities of a humble little worm.

Red wiggler worms have a unique talent. They gobble up organic material and turn it into rich topsoil. Some clever folks have harnessed this ability and are building privies as clean as they are green.

The technology, employed in developing countries for almost a decade, has proven a boon to public health. In Ghana, for example, wiggler-powered toilets helped eradicate dracunculiasis, a parasite-generated disease that once afflicted hundreds of thousands. At Camp Creek State Park and Forest in West Virginia, the toilets are giving campers and backpackers the unfamiliar experience of breathing fresh air while visiting a public privy.

“Guests who have used them have made many positive comments about them,” says Frank Ratcliffe, the superintendent at Camp Creek. “Think about that. We don’t usually get positive comments about any kind of restroom facility, let alone outhouses.”

Stephen Mecca, a Providence College physicist, pioneered the toilets’ design when he invented what he calls the “microflush valve.” Conventional toilets use gallons of water for each use; microflush toilets use just 8 ounces.

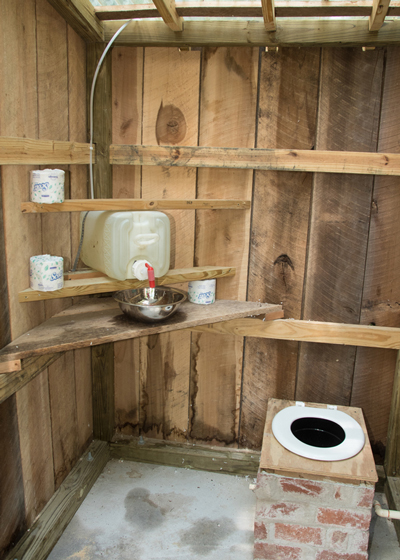

The toilet at West Virginia’s Camp Creek State Park and Forest is bright and airy inside — but more important, it’s free of flies and doesn’t stink like an ordinary pit toilet. People who use the loo recharge the water supply in the toilet bowl with the water they use to wash their hands. Photo © John McCoy

When flushed, liquid and solid waste products in the toilet bowl drop onto a rearward-slanting grate covered with straw, topsoil and oodles of ravenous red wigglers. Liquids filter through the soil and collect in a “soak hole,” a miniature leach field like those used in rural septic systems. Worms devour the solids and, within a week, transform them into fully composted topsoil. The slanted grate pitches the topsoil to the rear of the pit, where it’s readily harvested and used in gardens.

Mecca’s valve keeps offensive odors from rising up through the toilet itself. An exhaust stack at the rear of the loo allows the unpleasantness to dissipate well away from humans’ discerning noses.

At the heart of the system burrow the red wigglers (Eisenia fetida), also known as tiger worms, redworms, brandling worms, trout worms and panfish worms. Their species name, fetida (formerly foetida), comes from the pungent, foul-smelling liquid they excrete when handled roughly. Native to Europe, they’re now found on every continent except Antarctica. Organic gardeners might recognize them as “composting worms,” which can be purchased from worm farmers.

Red wigglers look a lot like standard-issue earthworms, but they’re not exactly dirt-dwellers. They prefer decaying organic material, and are most commonly found in rotting vegetation, compost heaps, and — you guessed it — manure piles.

Also known as tiger worms, red worms, brandling worms, trout worms and panfish worms, red wigglers have been introduced to every continent except Antarctica. Photo © John McCoy

The worms’ penchant for poo-gobbling helped work a minor miracle in Ghana, where poor sanitation contributed to a public health crisis that raged for decades. In 1989, an estimated 179,000 Ghanians suffered from dracunculiasis, a disease borne by parasitic Guinea worms.

Guinea worms’ larvae thrive inside water fleas that inhabit pools of contaminated water. People who drink the water ingest the larvae as they ingest the fleas. The larvae then grow into adult worms, 1 to 2 mm in diameter and up to 80 cm (31 inches!) long.

After a year of burrowing through their unfortunate hosts’ bodies, they slowly bore their way out. The best way to get rid of them is to wind them up on sticks as they crawl out, a process that take weeks. Pain from the wound can persist for months.

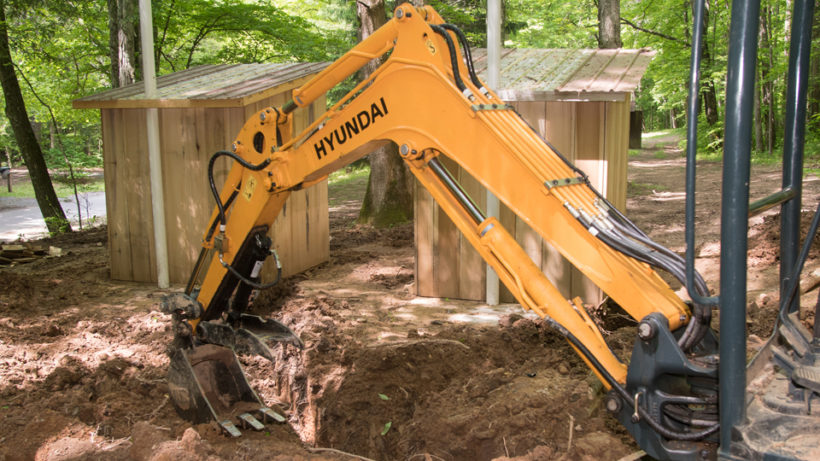

The success of the first toilet prompted Camp Creek officials to build two more for the park’s rustic campground. Photo © John McCoy

In 2009, workers for the Global Sustainable Aid Project (GSAP) began teaching Ghanians how to build microflush toilets. The privies, each built to process the wastes from two to three families, prevented sewage from contaminating water supplies. In 2015, officials from the World Health Organization certified that dracunculiasis had been eradicated within the country.

The builders of the Camp Creek privy dressed it up to look like a traditional Appalachian outhouse, right down to the board-and-batten siding and the “West Virginia crescent moon” carved into the door. The toilet cost just $700 to construct. Photo © John McCoy

Red-wiggler technology made the jump from Africa to West Virginia in 2016, when a park visitor complained about a particularly foul-smelling Port-a-John. The man was a local member of Rotary International, which had worked with GSAP to bring microflush privies to Ghana.

“He said what we really needed was one of the toilets they helped build there,” says superintendent Ratcliffe.

Two local Rotary Clubs teamed up with GSAP and the park’s foundation to build that first outhouse. Ratcliffe says it was the first use of microflush technology for public use in the United States.

Completed in 2017, with a translucent roof and a cistern to collect rainwater for hand-washing and flushing, the bright, airy outhouse cost just $700 to construct. Visitors loved it so much Ratcliffe decided to build two more. State officials now want to extend red-wiggler technology into other parks, particularly in rustic camping areas.

“They’ll eliminate old-fashioned earthen pit toilets, the flies and the smell,” Ratcliffe says. “They’re a very clean, very neat solution to a long-time problem.”

Join the Discussion

Please note that all comments are moderated and may take some time to appear.

27 comments

  1. If this technology works as well as described it could be a big help to the problem of national, state and local park sanitation and directly lead to a resurgence of family camping.

    1. I agree with you Penny. This is a bad idea! I have personally seen the devastation done by non-native invasive earthworms on the forest ecosystem in Minnesota. Somehow invasive earthworms seem to get a free pass with many people.

  2. Excellent idea they should install them in all primitive campgrounds across the country.

  3. Fantastic idea and execution: let’s bring this solution to the challenge of US pig farms!

  4. Havw these composting toilets been adapted fir use in homes and, if so, how can one one purchase and install one?
    Fabulous idea to preserve water and replenush soils.

  5. I love this article. I have a 2bed/2 bath home, but when I have family visiting, we always wish we had one more WC for emergencies! It seems a no brainer to have a set-up like this out in my garden shed, which is on a hill leading down to a canyon (uninhabited except for wood rats and deer and such), with plenty of room for its own mini septic field and worms.
    I’m in coastal California, with rarely a frost and never a freeze, (especially with climate warming) so I think the worms would love their new home.
    Will this system be available commercially some day? I think the only drawback would be that I might not have enough “food” for the worms when no visitors are here, but maybe they’d double as composters of food.
    AND–the local water police could hardly object to an 8 ounce flusher!

  6. The end product of the worm composting is humus, not topsoil.

  7. What wonderful technology! I suggest they be used all over the world, especially in wildlife preserves where pit toilets are the norm.

  8. Great idea. Wish they would use it everywhere as I have been in some stinking toilets

  9. It seems to me to be a very good idea, having used more than a few stinky park outhouses.

    It seems it could also be modified to meet the needs of homeless populations. A few of those on public property would help resolve one large problem of the homeless not having enough resources to toilets.

    Just raise the door to discourage sleeping in the outhouse, and the cost is pennies to the urban toilets cost that can cost thousands. Plus the compost would be good for the parks.

  10. These types of toilets need to built in every campground/picnic area where there are now standard-issue pit toilets that need to be pumped!!

  11. What about the older idea that it’s not OK to use composted feces on food crops? I’ve heard that worms in composting bins, for example, can’t stand the high heat required to burn up pathogens. Your article mentions “used in gardens.” That would have been a good place to touch on that topic.

    I’m all for composting and gardening, by the way. If that old idea about disease being spread through feces, applies only to raw sewage, and not to what’s produced by composting piles, composting toilets, or the microflush toilets mentioned, people definitely need to have that spelled out.

    Thanks for listening.

  12. All this dear world of ours needs is Good Ideas and this certainly is one of them!

  13. Great idea. I use red wigglers to compost my kitchen scraps and other food waste. They work good. Although what I have read on worm composting says not to put pet poop or human poop in the bin. A dedicated toilet would probably be ok though. I’ve read that this is already being used on big hog farms to get rid of a lot of the waste.

  14. I don’t want to be difficult but 8 ounces will not wash anything very far or much. Period! I have one of the low volume newish toilets and do not trust it to flush solids all the way to the sewer tank so I feel i need to flush twice there by not saving water but at least having a higher seat which for old farts is nice.

  15. As you said, Eisenia fetida is NOT native to the U.S. We should NOT be introducing them into our native areas. They will out compete or may even hybridize with our native species. This is really not a good idea.

    Diane Goldberg
    St Lucie Audubon Conservation Chair

  16. Isn’t it true, though, that when we humans start tinkering around with nature for our own perceived needs that we disturb the natural balance and often create more harm than good? We brought the red wrigglers to this continent to begin with where they have spead from sea to sea, invading the glaciated northern tier of the continent where the forested ecosystems had developed without worms, and displacing native worms in our glacier-free southern areas. The rich mulch layer built up over centuries in northern forests is being consumed by these worms and changing the ecological balance. What other damage are we causing by dropping these critters into every pit toilet in the land?

  17. Great story about a positive result from the right man being in the wrong outhouse at the right time. May it become a successful prototype for public parks.

  18. This low tech solution is impressive! I’d like to install one in our community garden, to replace a porta-potty that costs us $150/month. We’d pay off the new unit in 5 months.
    Are there any studies yet on the safety of using this particular compost for food production?
    Where can I get plans and buy any special parts? It sounds like a great Boy Scout Eagle badge project.
    Thanks!
    Local Ecology and Agriculture Fremont
    Fremont, CA

  19. This seems to be a wonderful solution to the problem of stinky roadside pit toilets that are found along some Wisconsin secondary highways. It had seemed that due to a severe lack of funds, constructing proper all-season indoor flush toilets could not be achieved, save for only a few along the interstate highways. Also the toilets at state parks are often pit toilets, and thus smelly and objectionable. At only about $ 700 to build one, I would be willing to pay an extra $700 to the state to build one of these, and since I am sure that there are at least 1000 other Wisconsin residents that are keen on our state parks and for attracting tourists and campers, this sounds like it could be easily achieved. Let’s do it.

  20. As a nature directed and science based organization I hope that someone at TNC has considered whether these worms have the potential to be destructive of the natural soil layers before promoting them as Cool Green Science. I see I’m not the first to comment on this. How about a response from the author / editor?

  21. I would like to build a privy pot in which to deposit materials when I do poop patrol in my yard. Can I get the human level plans and I try to retro-construct one for myself use?

  22. After reading the concerns of many of those who commented here, I contacted Dr. Mecca to see if he could address the invasive-species issue. Unfortunately, Dr. Mecca passed away in late August. This reply, slightly abridged to focus on the crux of the questions, came from Dr. Mecca’s son, Steve Mecca:

    “There are, in every continent on earth except for Antarctica, one or more varieties of E. fetida that digest various organic matter, including human waste. So the reference to red wiggler worms that Frank Ratcliffe mentioned [in the article] is the local species. The Microflush Toilet is now in 22 countries.”

    I interpreted this response to say that people who build microflush toilets should find and use indigenous species of E. fetida.
